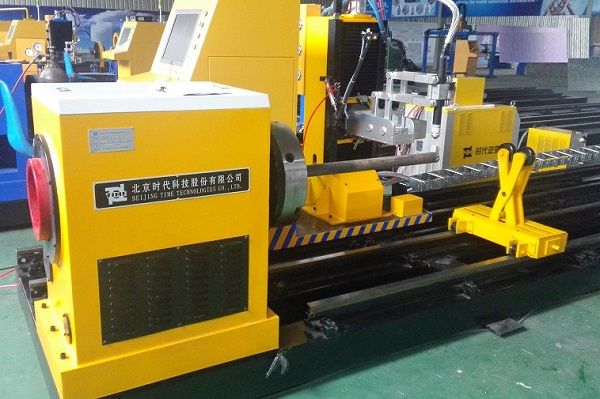

TDC XY intersecting line CNC cutting machine

Feature code：

Independent research and development to optimize CNC pipe system, Configuring the TIME application plug-in, excellent EGES DXF SAT and STL software compatibility.
The client can enjoy special cutting process development and life-long technical services free.
AC servo drive, transmission adopts precision planetary gear reducer

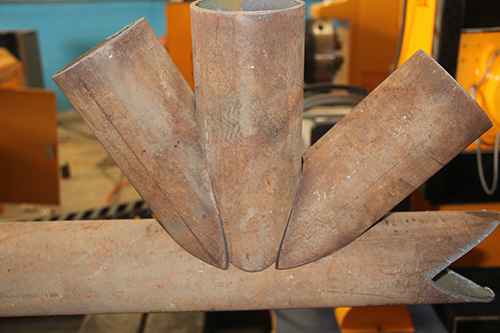

For workpiece of diameter 40-3000mm, length≤6000mm、thickness≤10mm, simple type TDC-XY3-B intersecting line cutting machine is recommended. The simple type machine can not cut bevel, it can only meet the hole processing request of end section, elbow and shrimp joint.

Model	TDC - XY
Effective cutting length (mm)	6000 (Can be customized)
Dimension (longitudinal track included) (mm)	7800×1800×1650 (Standard)
Cutting method	Flame or plasma
Lifting stroke of torch (mm)	200
Cutting speed (mm/min)	Flame：20~700, Plasma：500~3500
Cutting thickness (mm)	Flame：6~60, Plasma：as per plasma power source
Control system	Industrial PC
Software	TIME PIPE
Working pressure of compressed gas (MPa)	≥7
Gas flow of plasma (L/h)	4500
Fuel gas	Acetylene / Propane
